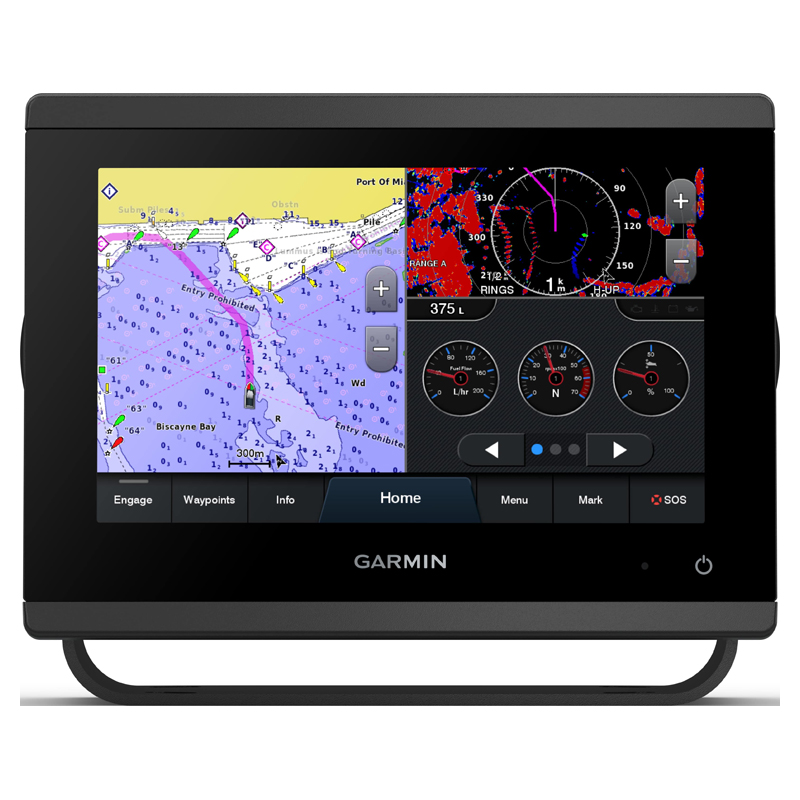

Garmin GPSMAP 723

Garmin GPSMAP 723 har en kompakt konstruktion och snabbare processorkraft vilket gör att de integreras sömlöst i ditt Garmins marina ekosystem. Ekolodsversionerna (XSV) har också inbyggda Ultra High Definition, SideVü och ClearVü ingång i nya levande Vivid ekolodspaletter och stöder 1 kW traditionellt CHIRP ekolod.

Vänligen notera att endast chartplotter kommer i detta paket.

Faster, Sharper, Smarter
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7-inch plotter in a wider range of dash configurations.

Improved Display Optics
New higher-resolution 7-inch displays offer improved sunlight readability with 60% more pixels than previous-generation 7-inch GPSMAP devices.

Garmin Sailassist Sailing feature.
View lay lines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

Optional Bluechart G3 Vision Chart.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

PANOPTIX™ Sonar Support
Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar to help you see and avoid submerged obstacles in real-time as you approach within a 300’ range.

GARMIN Marine Network
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® And NMEA 0183 Network
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ActiveCaptain APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.

Integrated Ant Technology
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

J1939 Connectivity
Now you can connect your Chartplotter to different kinds of engines, including select Yamaha engines.

Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Specifikationer

• Fysiska Mått: 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm)

• Skärmstorlek, B X H: 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal)

• Skärmupplösning, B X H: 1024 x 600 pixels

• Skärmtyp: WSVGA display

• Vikt: 2.8 lbs (1.3 kg)

• Vattenklassning: IPX7

• Polarized Support: Yes

• Strömförbrukning:

• Max power usage at 10 Vdc: 17.6 W

• Typical current draw at 12 Vdc: 1.1 A

• Max current draw at 12 Vdc: 1.5 A

• Antenn: Internt eller externt via NMEA 2000

• Monteringsalternativ: Bail, flush or flat

• Receiver: 10 Hz high-sensitivity
• Garmin Marine Network™-Portar: 1

Kartor Och Minne

• Förladdade Kartor: Worldwide basemap

• Accepterar Datakort: 2 microSD™ cards (back of unit)

• Waypoints 5000

• Spårlogg 50,000 points; 50 saved tracks
• Rutter 100

Utomhus- Och Fritidsaktiviteter

• Tidvattentabeller: Yes

Rekommenderade Plottrar

• Kompatibel Med Garmins Radarenhet: Yes

• Kompatibel Med Garmins Ekolod: Yes (with external black box, sold separately)

• Kompatibel Med Garmin Smartmode (Anpassningsbara Förinställningar För Bildskärm): Yes

• Stöder Ais (Spårar Objektfartygens Position): Yes

• Stöder Dsc (Visar Positionsdata Från Vhf-Radio Med Dsc-Funktion): Yes

• Stöd För Fusion-Link™-Kompatibel Radio: Yes

• Stöd För Gsd™ Black Box-Ekolod: Yes

• Stöd För Gcv™ Black Box-Ekolod: Yes

• Kompatibel Med Activecaptain: Yes

• Kompatibel Med Grid™ (Garmin Remote Input Device): Yes

• Trådlös Fjärrkompatibel: Yes
• Seglingsfunktioner: Yes

Rekommenderade Ekolod Och Specifikationer

• Chirp Sonar Technology: Yes (med externt Black Box-ekolod)
• Clearvü: Yes (with external black box, sold separately)
• Sidevü: Yes (with external black box, sold separately)

Anslutningar

• Kompatibel Med Nmea 2000®

• Nmea 0183-Ingångsportar 1 (Differential)

• Nmea 0183-Utgångsportar 1 (Differential)

• Port För Videoingång 1 BNC

• Trådlös Anslutning

• J1939 Compatible

• GPSMAP 723 chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000^® T-connector
• NMEA 2000 drop cable (2 metres)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Dokumentation
