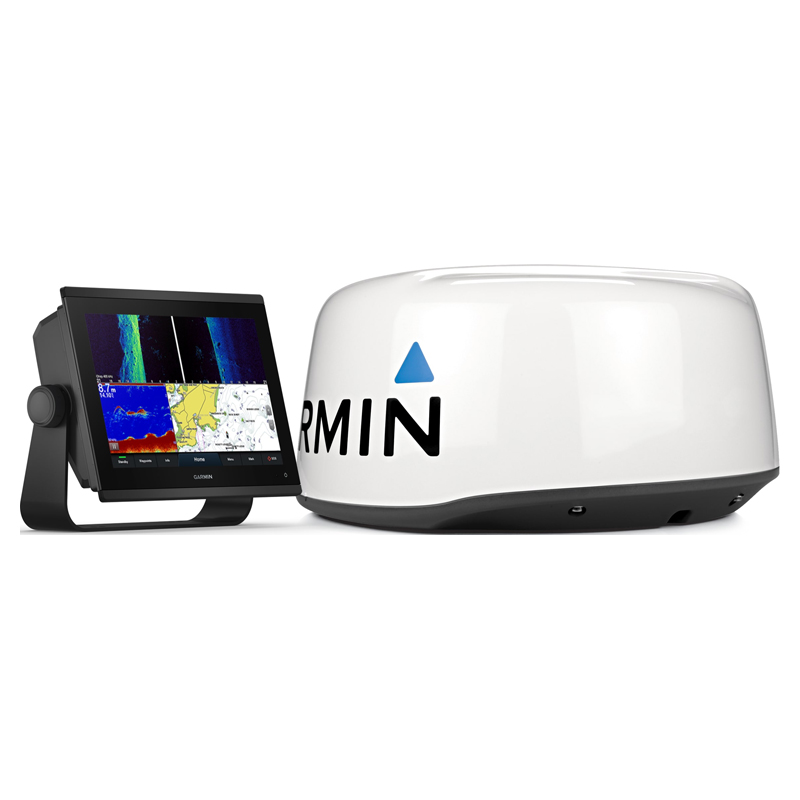

Garmin GPSMAP 1223xsv, Worldwide med GMR 18HD+

Garmin GPSMAP 1223xsv, Worldwide med GMR 18HD+ har en kompakt konstruktion och snabbare processorkraft vilket gör att de integreras sömlöst i ditt Garmins marina ekosystem. Ekolodsversionerna (XSV) har också inbyggda Ultra High Definition, SideVü och ClearVü ingång i nya levande Vivid ekolodspaletter och stöder 1 kW traditionellt CHIRP ekolod.

Faster, Sharper, Smarter
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 12-inch plotter in a wider range of dash configurations.

Garmin Sailassist Sailing feature.
View lay lines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

Optional Bluechart G3 Vision Chart.
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology and other premium navigation features.

PANOPTIX™ Sonar Support
Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar to help you see and avoid submerged obstacles in real-time as you approach within a 300’ range.

GARMIN Marine Network
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® And NMEA 0183 Network
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ActiveCaptain APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.

Integrated Ant Technology
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

J1939 Connectivity
Now you can connect your Chartplotter to different kinds of engines, including select Yamaha engines.

Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.


Specifikationer

• Fysiska Mått: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)

• Skärmstorlek, B X H: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)

• Skärmupplösning, B X H: 1280 x 800 pixels

• Skärmtyp: WXGA display

• Vikt: 6.6 lbs. (3.0 kg)

• Vattenklassning: IPX7

• Polarized Support: Yes

• Strömförbrukning:
  Max power usage at 10 Vdc: 26.5 W
  Typical current draw at 12 Vdc: 1.7 A
  Max current draw at 12 Vdc: 2.2 A
• Antenn: Internt eller externt via NMEA 2000

• Monteringsalternativ: Bail, flush

• Receiver: 10 Hz high-sensitivity
• Garmin Marine Network™-Portar: 2
• Överföringseffekt: 1 kW traditional; 1 kW CHIRP

Kartor Och Minne

• Förladdade Kartor: Worldwide basemap

• Accepterar Datakort: 2 microSD™ cards (back of unit)

• Waypoints 5000

• Spårlogg 50,000 points; 50 saved tracks
• Rutter 100

Utomhus- Och Fritidsaktiviteter

• Tidvattentabeller: Yes



Rekommenderade Plottrar

• Kompatibel Med Garmins Radarenhet: Yes

• Kompatibel Med Garmins Ekolod: Yes (Inbyggt)

• Kompatibel Med Garmin Smartmode (Anpassningsbara Förinställningar För Bildskärm): Yes

• Stöder Ais (Spårar Objektfartygens Position): Yes

• Stöder Dsc (Visar Positionsdata Från Vhf-Radio Med Dsc-Funktion): Yes

• Stöd För Fusion-Link™-Kompatibel Radio: Yes

• Stöd För Gsd™ Black Box-Ekolod: Yes

• Stöd För Gcv™ Black Box-Ekolod: Yes

• Kompatibel Med Activecaptain: Yes

• Kompatibel Med Grid™ (Garmin Remote Input Device): Yes

• Trådlös Fjärrkompatibel: Yes
• Seglingsfunktioner: Yes

Rekommenderade Ekolod Och Specifikationer

• Funktion För Ekolod Med Två Frekvenser
• Funktion För Ekolod Med Två Strålar
• Frequencies Supported:
  Traditional: 50/77/83/200 kHz
  CHIRP (low, medium, high)
  ClearVü (260/455/800 kHz)
  (dependent on transducer)
• Chirp Sonar Technology Yes (Built-in)
• Clearvü Yes with CHIRP (built-in)
• Sidevü Yes with CHIRP (built-in)
• Maximalt Djup 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
• Bottenlås (Visar Retur Från Botten Och Uppåt)

Anslutningar

• Kompatibel Med Nmea 2000®: Yes
• Antal Givarpoler: 12-pin (orange)
• Nmea 0183-Ingångsportar: 1
• Nmea 0183-Utgångsportar: 1
• Port För Videoingång: 1 BNC
• Trådlös Anslutning: Yes
• J1939 Compatible: Yes

Vad kommer i paketet?

• GPSMAP 1223xsv chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 metres)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Dokumentation

18 HD+ Radar

• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 metres)
• Network cable (15 metres)
• Installation instructions
• Mounting template
