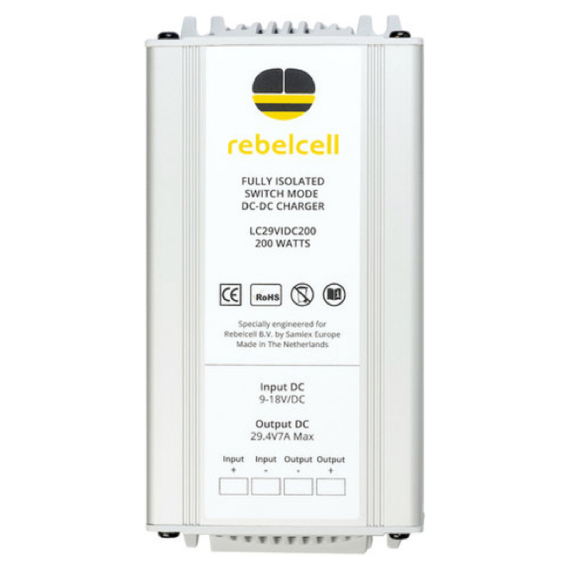

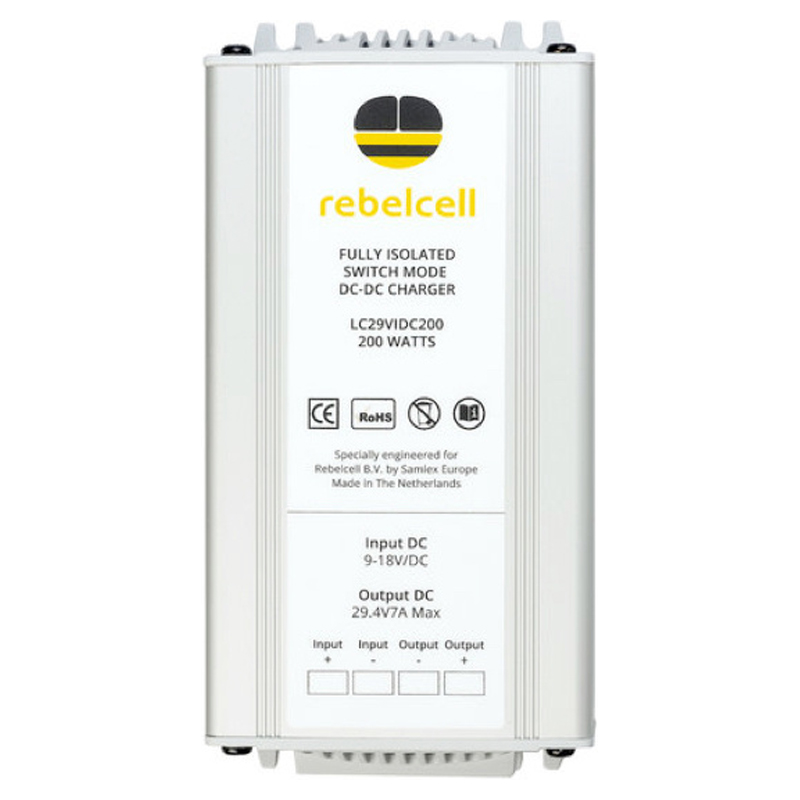

Rebelcell Range Extender 29.4V07A for 24V50 AV/24V100 Battery

Denna box är till för att ladda dina 24V50 / 24V100 batterier via din utombordare och på detta sätt öka din användningstid. Se till att helst ha en motor med 12v alternator med en 17A laddström, i praktiken en 80hk motor.

RE Converter ändrar själv strömmen för att ge ditt batteri en rätt och säker laddning. Den ser också till att ditt startbatteri alltid är fullt först, innan den börjar sno ström till dina förbrukningsbatterier.

Du får med:

1x Rebelcell DC Laddare 29.4V07A (200W)
1x Samlex BS100 Dual Batteru Separator
1x Kabelset med integrerade säkringar och kontakter.

Såhär skriver Rebelcell själva.

The Range Extender is suitable for use with (outboard) engines that meet the minimum alternator output requirements as indicated before. Consult the manual of your (outboard) engine for this information. Lower than specified charge current from the alternator will lead to de-activation of the DC charger as the battery separator will stop current flow to avoid discharge of the starter battery.

The Range Extender is therefore not suitable for use with (outboard) engines that use a charging coil instead of an alternator: the capacity is not sufficient to charge both the starter battery and Rebelcell battery. Only use the Range Extender with the suitable Rebelcell battery (24V50 / 24V100) ! Using it with a different battery can lead to irreversible damage to your equipement and battery. This damage is explicitly excluded from warranty. Consult a certified electrician if you have any questions about installation

Note: additional cables for connecting the starter battery to the RE are not included. Cable length, thickness and connectors need to be customised to your specific situation. Contact your installation partner for the advise on the correct cables.

Range Extender to recharge your Rebelcell 24V50 / 24V100 battery ‘on the go’ via your (outboard) engine and extend your battery range. Suitable for use with (outboard) engines with 12V alternator with > 17A charge current ( in practice ~ 80HP + (outboard) engine).
